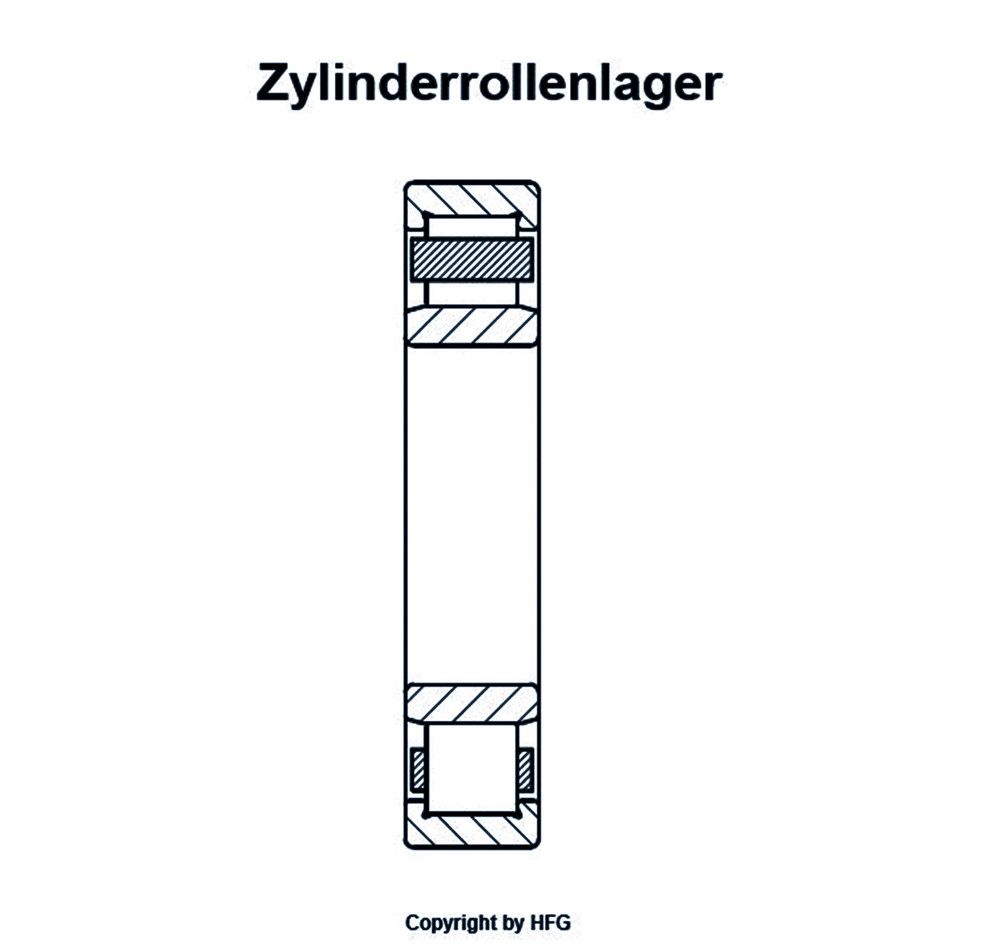

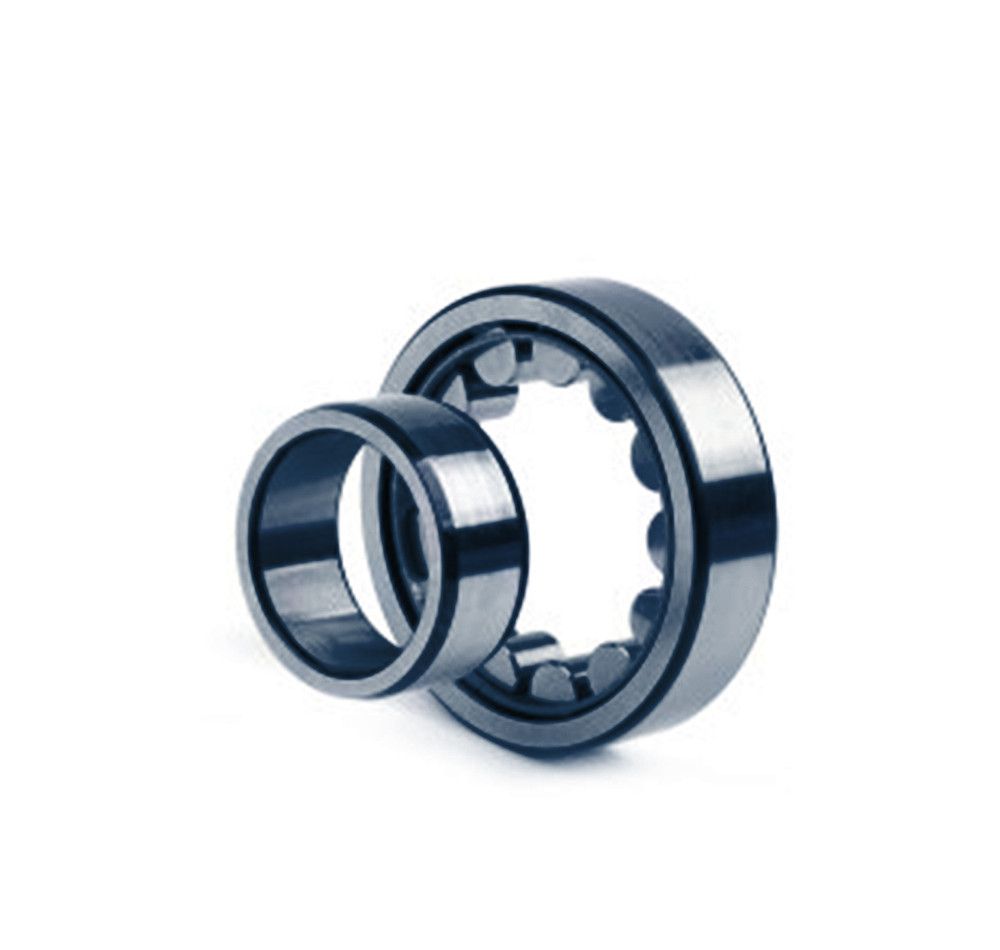

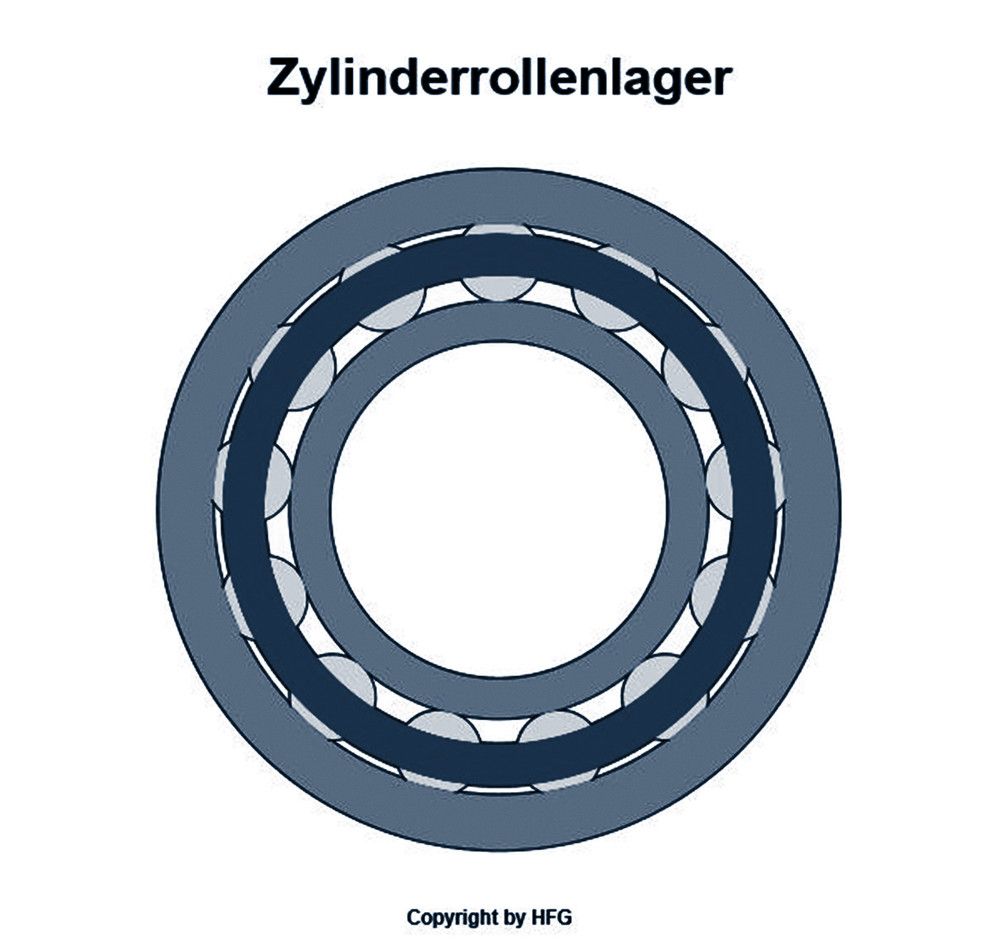

NKE cylindrical roller bearing NU2309 -E-TVP3

NKE cylindrical roller bearing NU2309 ETVP3
Manufacturer: NKE

Product features:
Inner diameter (mm): 45
Outer diameter (mm): 100
Width (mm): 36
Weight (kg): 1.3
Seal: none, open bearing
Internal clearance: normal radial internal clearance
Temperature range: -30 to +120 degrees
Running accuracy: Tolerance class P0/PN or ABEC 1
Electrical insulation: none
Bore: cylindrical bore
Roller rows: single-row bearing
Design: Loose bearing, inner ring removable from both sides
Outer ring: without groove/lubrication hole
Cage: Polyamide cage
